+ More | + More | |||||||||
PRICE | $4,999 $3,399 USD | $6,299 $4,299 USD | ||||||||
FRAME | Spur Carbon 120mm (Non-UDH) | Spur Carbon 120mm (Non-UDH) | ||||||||
WHEEL SIZE | 29" | 29" | ||||||||
REAR SHOCK | Fox DPS Performance (190x45mm) |
Fox DPS Performance Elite (190x45mm) |
||||||||
FORK | Fox Float 34 Rhythm (120mm) |
Fox Float 34 Performance Elite Fit 4 (120mm) |
||||||||
HEADSET | FSA No.57E | FSA No.57E | ||||||||
STEM | RaceFace Aeffect R (40mm) | ANVL Swage (40mm) | ||||||||
HANDLEBAR | RaceFace Aeffect R SM/MD (780x20mm) LG/XL (780x35mm) |
ANVL Mandrel Alloy SM/MD (800x20mm) LG/XL (800x30mm) |
||||||||
GRIPS | ODI Elite Flow | ODI Elite Flow | ||||||||
SADDLE | SDG Bel Air 3 | ANVL Forge Cromo or SDG Bel Air 3 |
||||||||
SEATPOST | OneUp Dropper Post SM (150mm) MD (180mm) LG/XL (210mm) |
OneUp Dropper Post SM (150mm) MD (180mm) LG/XL (210mm) |
||||||||
BRAKES | SRAM G2 R | SRAM G2 RSC | ||||||||
ROTORS | SRAM Centerline (180mm) | SRAM Centerline (180mm) | ||||||||
SHIFTER | SRAM NX Eagle | SRAM GX Eagle | ||||||||
DERAILLEUR | SRAM NX Eagle | SRAM GX Eagle | ||||||||
CASSETTE | SRAM XG 1230 (10-50t) | SRAM XG 1275 (10-52t) | ||||||||
CHAIN | SRAM NX Eagle | SRAM GX Eagle | ||||||||
CRANK | SRAM Stylo 6k DUB (32t/170mm) |
SRAM GX Eagle DUB (32t/170mm) |
||||||||
RIMS | WTB ST i25 | RaceFace Aeffect R | ||||||||
SPOKES | Pillar Double Butted | RaceFace 2.0/1.7/2.0 | ||||||||
HUBS | Novatech D791SB/D902SB | RaceFace Trace 28h | ||||||||
TIRE/FRONT | Maxxis Dissector 3C EXO (2.4) | Maxxis Dissector 3C EXO (2.4) | ||||||||
TIRE/REAR | Maxxis Rekon 3C EXO (2.4) | Maxxis Rekon 3C EXO (2.4) | ||||||||
INCLUDED | Tubeless Valves & Sealant | Tubeless Valves & Sealant | ||||||||

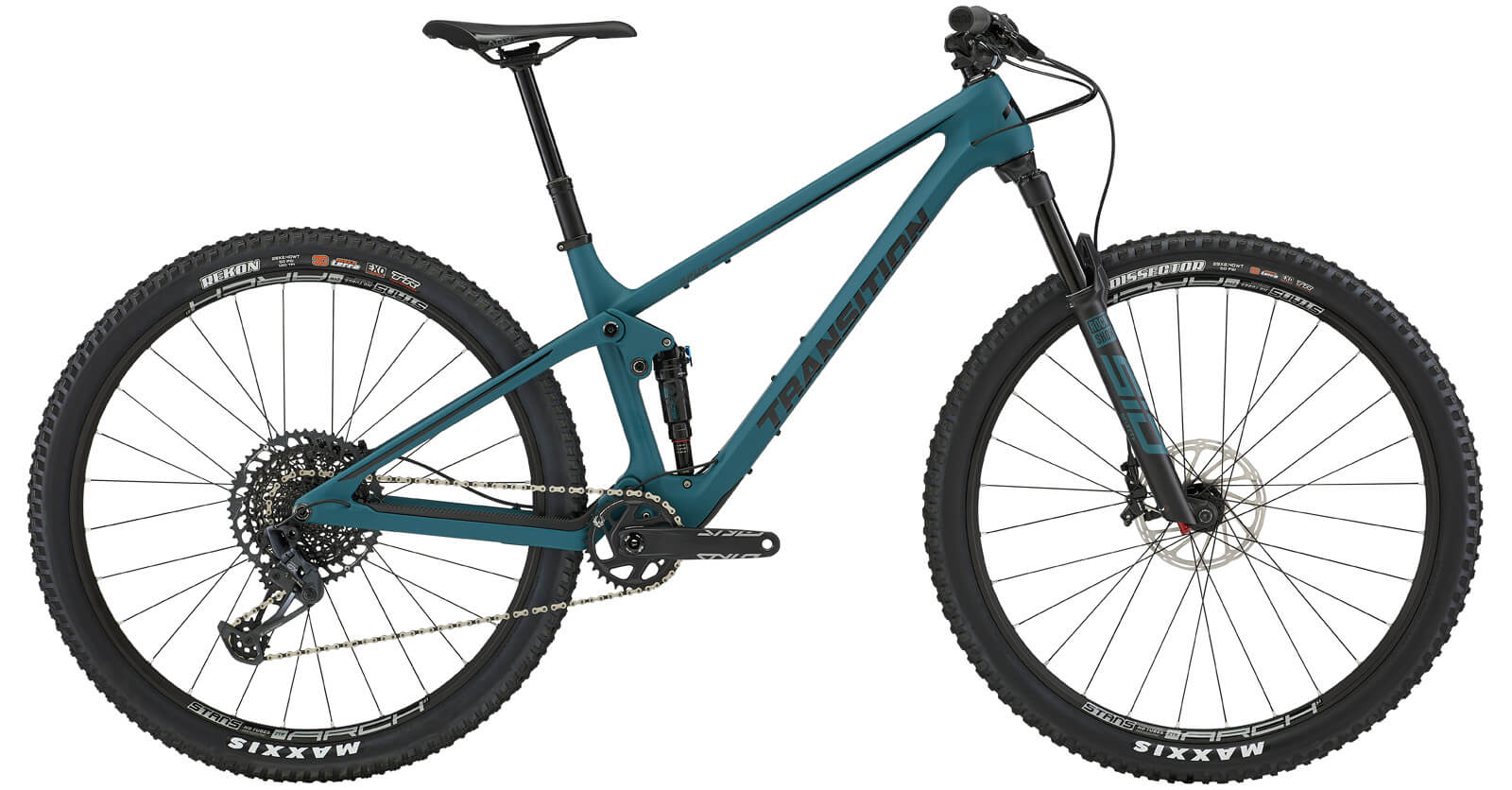

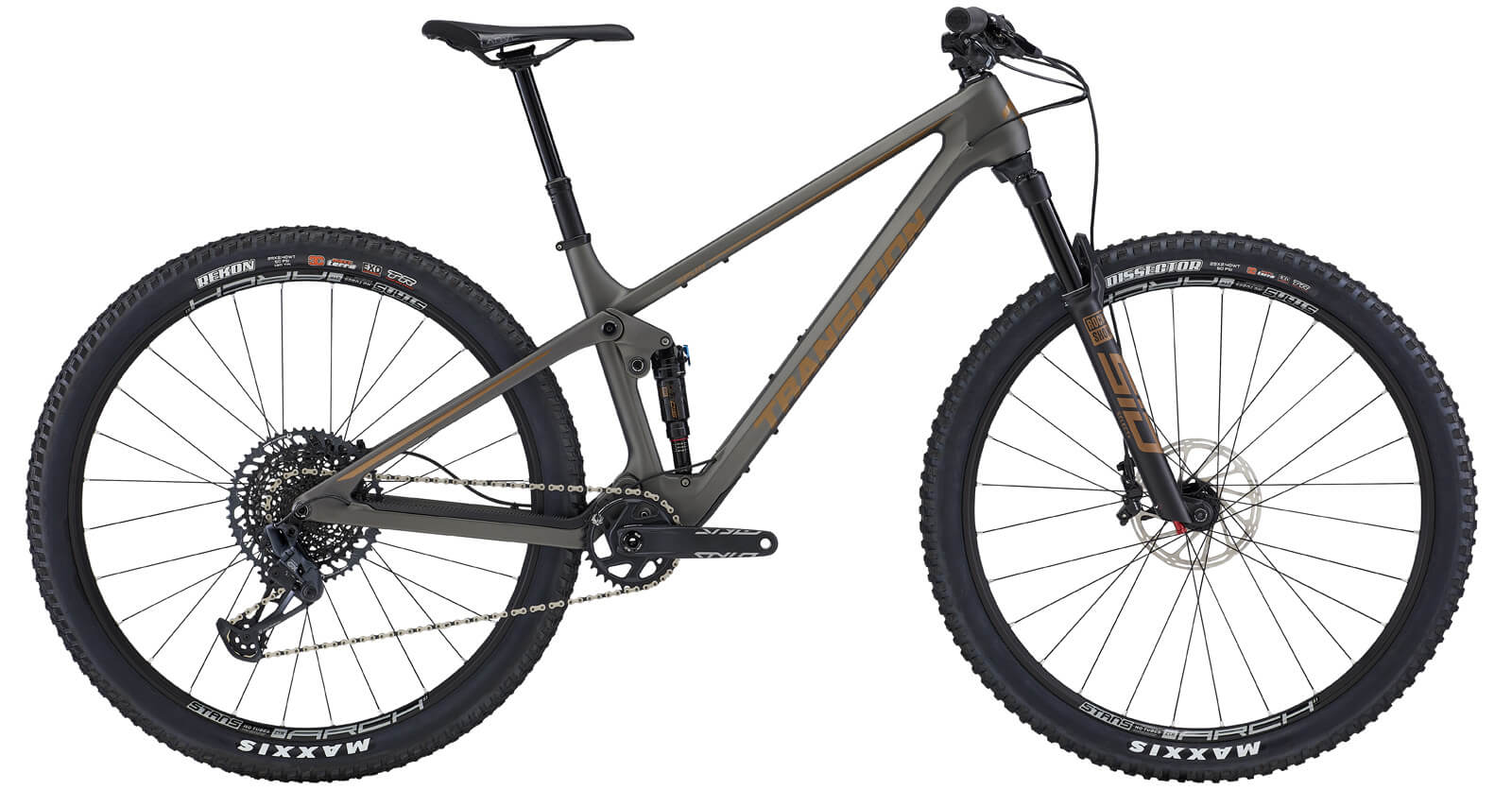

COLOR OPTIONS |
|
|
||||||||
WEIGHT | 29.8 lbs/13.51 kg (Size MD) | 28.6 lbs/12.82 kg (Size MD) | ||||||||
Specs are subject to change at any time. All complete bikes are 95% assembled and packaged for quick and easy final assembly, and as such, Transition Bikes is not able to make special request build spec changes or modifications to packaging. |
Speed Balanced Geometry SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed maneuvering as well as improved traction, control and confidence for any skill level of rider. |
|||||||
SM | MD | LG | XL | ||||
A.REACH | 425 | 455 | 480 | 510 | |||
B.STACK | 600 | 610 | 619 | 632 | |||
C.EFFECTIVE TT LENGTH | 569 | 602 | 630 | 664 | |||
D.SEAT TUBE LENGTH | 380 | 410 | 460 | 500 | |||
E.EFFECTIVE ST ANGLE | 76.7° | 76.2° | 75.9° | 75.6° | |||
SADDLE HEIGHT FOR EFFECTIVE ST ANGLE | 600 | 660 | 720 | 780 | |||
ACTUAL ST ANGLE | 72° | 72° | 72° | 72° | |||
SEAT TUBE OFFSET AT BB | 51 | 51 | 51 | 51 | |||
F.HEAD TUBE LENGTH | 100 | 110 | 120 | 135 | |||
G.HEAD TUBE ANGLE | 66.0° | 66.0° | 66.0° | 66.0° | |||
H.CHAINSTAY LENGTH | 435 | 435 | 435 | 435 | |||
I.WHEELBASE | 1156 | 1190 | 1219 | 1255 | |||
J.BOTTOM BRACKET DROP | 40 | 40 | 40 | 40 | |||
K.ESTIMATED BB HEIGHT | 335 | 335 | 335 | 335 | |||
L.STAND OVER HEIGHT | 662 | 667 | 670 | 677 | |||
M.FORK OFFSET | 44 | 44 | 44 | 44 | |||
|
REAR TRAVEL: | 120mm (Compatible with 100mm) | ||
FRONT TRAVEL: | 120mm | ||
WHEEL SIZE: | 29" | ||
SIZES: | SM, MD, LG, XL | ||
FRAME BEARINGS: | 2x 6903, 4x 6901 | ||
FORK AXLE TO CROWN: | 533mm (Includes headset) | ||
FORK OFFSET: | 44mm | ||
REAR SHOCK SIZE: | 190mm x 45mm (Compatible with 190mm x 37.5mm) | ||
SHOCK HARDWARE: | 30mm x 8mm Top / 25mm x 8mm Bottom | ||
HEADSET (TOP): | 44mm Zero Stack | ||
HEADSET (BOTTOM): | 56mm Zero Stack | ||
BB SHELL: | 73mm BSA Threaded | ||
CHAINLINE: | 52-55mm | ||
REAR BRAKE MOUNT: | 160mm Post Mount, Max Rotor Size 200mm | ||
REAR AXLE: | Syntace X12 148 (Boost), 1.0mm Thread Pitch (Aqua, Raw) Transition Axle For UDH, 12mm x 148mm Spacing (Hazy Grey, Blackberry) | ||
ISCG TABS: | ISCG05 (Top/Front 2 mounts only) | ||
SEATPOST DIAMETER: | 31.6mm | ||
SEAT CLAMP: | 37.0mm | ||
MAX SEATPOST INSERTION: | Small 250mm | Medium 280mm | Large 330mm | XL 330mm | ||
MAX CHAINRING SIZE: | 36T Standard Single Ring | ||
MAX TIRE SIZE: | 29 x 2.4 | ||
REAR SHOCK SAG: | 120mm (45mm) = 12-15mm (27-33%) 100mm (37.5mm) = 10-12mm (27-33%) |
